Internet of Things communication module application power solution

The development of the Internet of Things has expanded to many fields, starting from automobiles, to smart homes, smart buildings, manufacturing and industrial plants, medicine and healthcare, safety and security, insurance, transportation, energy, distribution, agricultural HEMS, smart electricity meters, etc. In addition, the emergence of 5G communication, its high-speed, large capacity, low latency and multiple connections, is expected to bring more explosive growth to the Internet of Things.

In the Internet of Things market, many devices and products connected to the Internet will use wireless communication to collect data from independent or built-in sensors, and then transmit the data to data through the Internet for AI analysis, and then transmit the analysis results to other Internet of Things devices and products, smartphones, tablets, etc. through the Internet.

Jiangsu Energy Electronics launches small-volume, low-cost, one-stop power supply solutions for communication module power supply

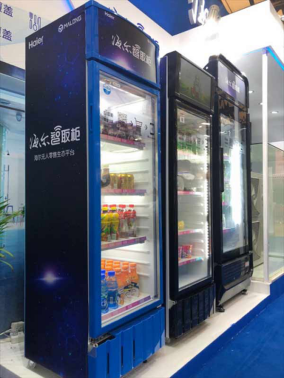

► Scene application diagram

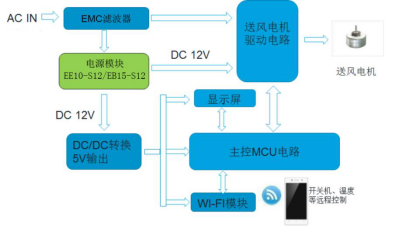

► Scheme block diagram

► Product entity diagram

► Advantages of core power supply technology

1. Small size, 10W product volume 39*25*22mm, 15W product volume 50.8*25.4*16mm

2. Wide input voltage range: 85~264VAC, AC and DC

3. Industrial grade working temperature: -40~+70℃

4. High Isolation of Input and Output

5. Complete protection functions: short circuit, overcurrent, overheating, etc.

► Product Specifications

► Technical Documentation

EE10.PDF

EB15.PDF
