| ●High efficiency, long life and high reliability |
|
| ●Output protection function: overcurrent/short circuit |
| ●Ultra-wide operating temperature range -30℃~70℃ |
| ●Use long-life electrolytic capacitors |
| ●100% full load aging test |
| ●Free fan, silent |
| ●3-year warranty |

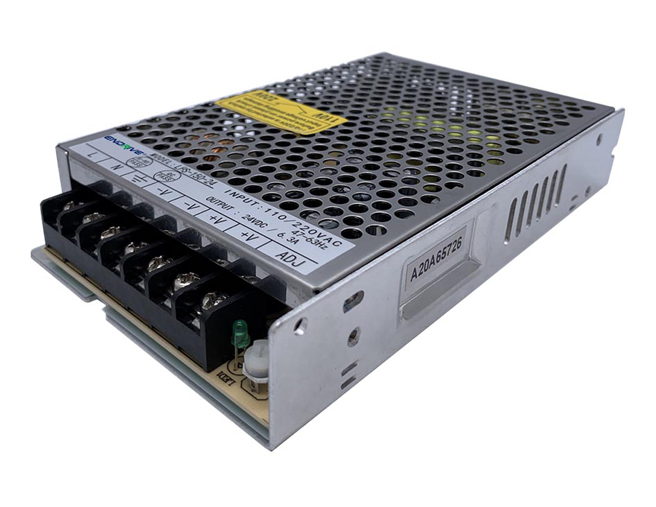

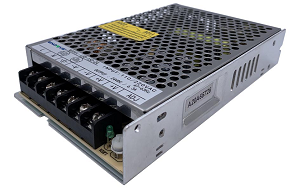

| name | LPS-150-5 | LPS-150-12 | LPS-150-15 | LPS-150-24 | LPS-150-36 | LPS-150-48 |
| Output | DC voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated output current | 25 l A | 12.5 l A | 10A | 6.3A | 4.2A | 3.2A |
| Output current range | 0~25 l A | 0~12.5 l A | 0~10A | 0~6.3A | 0~4.2A | 0~3.2A |
| Ripple noise (peak-peak voltage) | 50mV | 120mV | 150mV | 200mV | 200mV | 200mV |
| Output voltage regulation range | ±10% of rated output voltage |
| Voltage stabilization accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Power supply voltage regulation rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load regulation rate | ±1.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Output start time | ＜1S (230VAC input), ＜2S (115VAC input) |
| Output hold time | ＜70ms/230VAC 15ms/115VAC |
| enter | Input voltage range | 88VAC~132VAC 176VAC~264VAC (switch switch) |
| Frequency range | 47Hz~63Hz |
| efficiency | 79% | 80% | 80% | 82% | 82% | 83% |
| Shock start current (typical) | <50A@230VAC <50A@115VAC Power cooler starts |
| Protection function | Overload protection | 105%~135% Rated output current, swaying machine, self-recovery |
| Overvoltage protection | 120%~130% Rated output voltage, swaying machine, can be restored by itself |
| Short circuit protection | Can be short-circuited for a long time, and can be automatically restored after eliminating the short-circuit |
| Working environment | Working temperature and humidity | -30℃~70℃;25%~90%RH |
| Storage temperature and humidity. | -40℃~85℃;10%~95%RH |
| Safety and electromagnetic compatibility standards | Safety standards | Reference GB4943/EN60950, UL62368-1, TUV EN62368-1 |
| Insulation strength | Input-output: 3KVac; .Input-ground: 1.5KVac; Output-ground: 0.5KVDC |
| other | MTBF (MIL-HDBK-217F) | More than 100,000Hrs (25℃, full load) |
| size(Length*width*height) | 152.5*97*30mm |
| Package | 600g/PCS |
| Cooling method | Natural cooling |
| Comments | 1.If not specified, all specification parameters are measured at the rated input, rated load, and 25℃ ambient temperature. |
