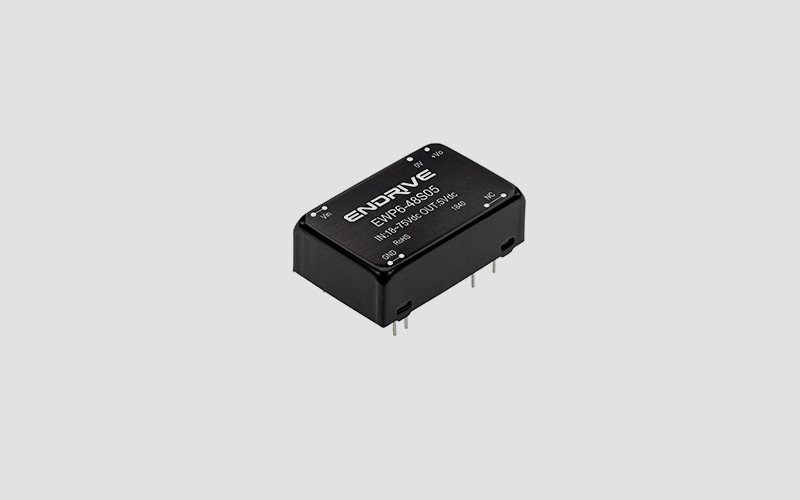

dcdc module power supply characteristics |
|
◆Wide input voltage range: 4:1 (9～36VDC, 18～72VDC)
◆Working temperature range: -40℃～+85℃
◆Short circuit protection (self-recovery)
◆Fire retardant plastic case packaging
◆Isolation voltage 1500VDC
◆Complied with RoHS directive |
Application scope |
The power supply of the dcdc module is mainly used in power systems such as wireless network, telecommunications/data communications, power systems, industrial control systems, measurement instruments and instruments, and intelligent fields. It is suitable for designs such as large fluctuations in the input range, small power isolation, and small layout space, and to achieve modular product functions to improve product reliability. |
| dcdc module power supply |
model | Input voltage range | Output voltage/output current Vo/Io | Efficiency (TYP) |
EWP6-24S05 | 9 – 36 VDC | 5V / 1200mA | 81% |
EWP6-24S12 | 9 – 36 VDC | 12V / 500mA | 83% |
EWP6-24S15 | 9 – 36 VDC | 15V / 400mA | 84% |
EWP6-24D05 | 9 – 36 VDC | ±5V / ±600mA | 81% |
EWP6-24D12 | 9 – 36 VDC | ±12V / ±250mA | 83% |
EWP6-24D15 | 9 – 36 VDC | ±15V / ±200mA | 85% |
EWP6-48S05 | 18 – 72 VDC | 5V / 1200mA | 80% |
EWP6-48S12 | 18 – 72 VDC | 12V / 500mA | 82% |
EWP6-48S15 | 18 – 72 VDC | 15V / 400mA | 83% |
EWP6-48D05 | 18 – 72 VDC | ±5V / ±600mA | 80% |
EWP6-48D12 | 18 – 72 VDC | ±12V / ±250mA | 82% |
EWP6-48D15 | 18 – 72 VDC | ±15V / ±200mA | 84% |
Note: ★For products under development. If you need other specifications and models, you can contact us directly. |
dcdc module power supply characteristics |
project | Test conditions | Min | Typ | Max | unit |
Output voltage accuracy | Input voltage range, 100% load (main circuit) |
| ±1 | ±2 | % |
Load adjustment rate | Load from 10% to 100% (main circuit) |
| ±0.5 | ±0.75 |
Voltage adjustment rate | Input voltage range |
| ±0.2 | ±0.5 |
Output short circuit protection | Sustainable, self-recovery |
Ripple & Noise | 20MHz bandwidth, nominal voltage input 100% load |
| 50 | 100 | mVp-p |
Switching frequency | Input voltage range 100% load | 120-300(PFM) |
Temperature coefficient | Nominal voltage input 100% load, -40℃～ +85℃ |
|
| ±0.03 | %/℃ |
Storage humidity |
|
|
| 95 | % |
Operating temperature | Safe workspace for product compliance | -40 |
| 85 | ℃ |
Storage temperature |
| -50 |
| 105 |
The shell heats up when the product works | Nominal voltage input 100% load |
| 10 |
|
Pin resistance to soldering temperature | The solder joint is 1.5mm from the edge of the shell, 10 seconds |
|
| 300 |
Insulation strength | Test time for 1 minute, leakage current is less than 0.5mA | 1500VDC |
Insulation resistor | Insulation voltage 500VDC | 1000 |
|
| MΩ |
Cooling method | Natural air-cool |
Housing material | Metal shell |
Average failure-free time | MIL-HDBK-217F@25℃ | 100 |
|
| Ten thousand hours |
weight |
|
| 13 |
| gram |
Note: 1. Except for special instructions, the above data are measured under TA=25℃ and humidity <75%;
2. Other specifications can also be provided. Please contact our company for details. |

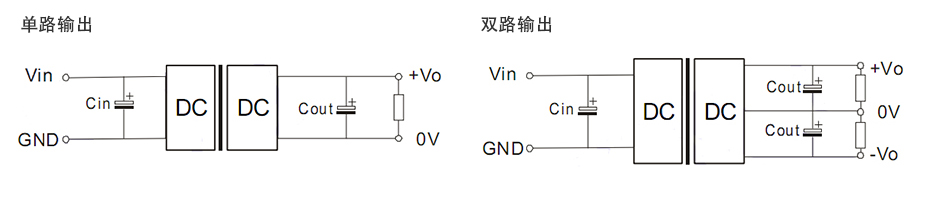

Typical Applications |
|
Notes on using:
输入电源的要求
产品的输入端必需接一个低阻抗的电压源，如果电压源阻抗过高或者电压源与产品的输入端之间的连接线过长会造成产品不稳定。在产品的输入端（尽可能靠近产品的输入引脚）接入一个低ESR的电容，可有效解决此问题的发生。例如，24V输入的产品，可接22μF的电容。 ② 降低输出纹波
若要求进一步降低输出纹波，可在输出端并联一个合适的滤波电容或接入一个“LC”滤波网络。需要注意的是输出端的外接电容不能选太大，否则可能会造成启动问题，具体请参考产品的***输出容性负载要求。“LC”滤波网络的带宽应远离产品的工作频率范围。一般情况下，在输出端接入一低ESR的滤波电容即可满足要求，通常Co=100uF。 ③ 输入电流
当输入电源电压不稳定时，请确保其输出电压波动范围满足产品的输入要求；输入电源的输出电流必须足够应付该产品的瞬时启动电流Ip，一般: Ip =2-4*Iin-max。 ④ 此产品不能并联使用，不支持热插拔 |

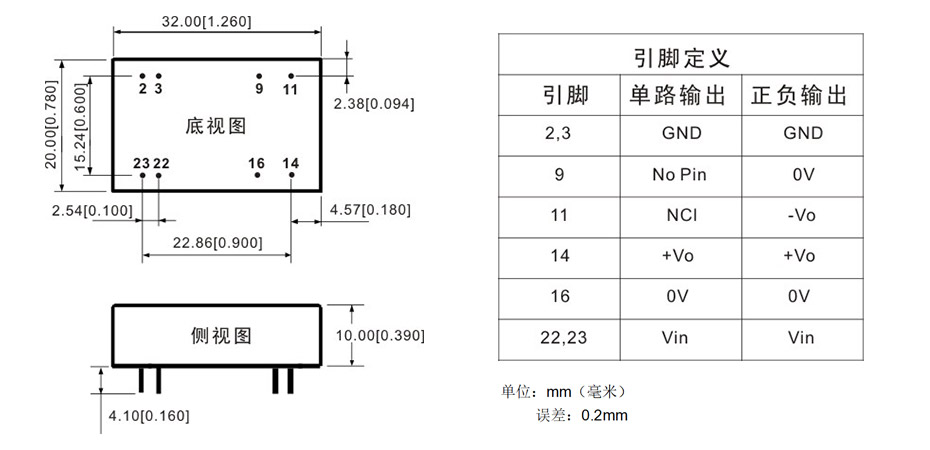

外观尺寸和引脚方式 |
|
