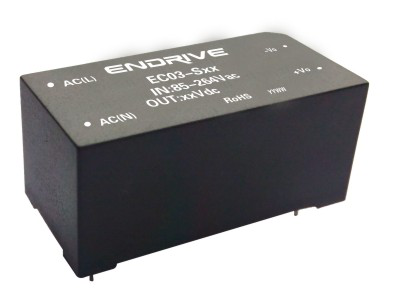

Features of acdc module power supply product |
|
◆Wide voltage input 85～264Vac (120～370VDC)
◆Output short circuit, over-temperature protection function
◆Small size, light weight
◆High efficiency, high power density,
◆Low power consumption, green and environmental protection
◆Industrial product technical design |
Application scope |
The acdc module power supply is mainly used in power systems such as wireless network, telecommunications/data communications, power systems, industrial control systems, measurement instruments and instruments, and intelligent fields. It is suitable for designs such as large fluctuations in the input range, small power isolation, and small layout space, and to achieve modular product functions to improve product reliability. |
Acdc module power supply model |
model | Input voltage (VAC) | Output voltage (VDC) | Output current (mA) | Ripple + Noise | Efficiency (TYP) |
EC03-S05 | 85～264Vac
(120～370VDC) | 5 | 600 | 150mV(typ) | 75% |
EC03-S12 | 12 | 250 | 76% |
EC03-S15 | 15 | 200 | 78% |
EC03-S24 | twenty four | 125 | 79% |
EC03-D05 | ±5 | 300 | 75% |
EC03-D12 | ±12 | 125 | 76% |
EC03-D15 | ±15 | 100 | 78% |
EC03-D24 | ±24 | 63 | 79% |
* If you have any other specifications and models, you can contact our company directly. |
Accdc module power input characteristics |
Input voltage range | 85～264VAC (120～370VDC) |
Input current (Vin=110V) | 0.125A (TYP) |
External fuse ★ | 1A/250V Slow-off |
Output Characteristics |
Output voltage regulation accuracy | ±2% |
Source effect | ±0.5% (typ) |
Load adjustment rate (10%~100%) | ±1% (typ) |
*** Small load | 10% |
Output ripple + noise (peak-peak) | 100mV(typ) (20MHz Bandwidth) |
Short circuit protection | Can be short-circuited for a long time and recovered |
General Features |
Temperature characteristics | Operating temperature
power derating
storage temperature
housing temperature | -40℃～+70℃
3.75% / ℃,
-40℃～+105℃
+90℃ max |
Power down time |
| 40ms(typ)/ at Vin:320Vdc |
humidity |
| 85%RH(max) |
Warm drift |
| 0.02%/℃ |
Switching frequency |
| 60kHz(typ) |
insulation | Input-Output | 3000VAC |
Leakage current |
| 0.3mA RMS typ. 230VAC/50Hz |
Electromagnetic compatible electrostatic discharge*
Radio frequency radiation immunity*
Electric fast transient pulse group*
surge* | IEC/EN 61000-4-2 level 3 6kV/8kV
IEC/EN 61000-4-3
IEC/EN 61000-4-4 level 3 2 kV
IEC/EN 61000-4-5 level 3 1kV/2kV |
Conducted/radiation* |
| EN55022, level A |
Safety Level |
| CLASS Ⅰ |
Case grade |
| UL94V-0 |
Install |
| PCB |
Average time of failure (MTBF) |
| >200,000h @25℃ |
Note: 1. Except for special instructions, the above data are measured under the conditions of TA=25℃ and humidity <75%;
2.* indicates that the EMC recommended circuit is required.
3. Other specifications can also be provided for input and output. Please contact our company for details; |

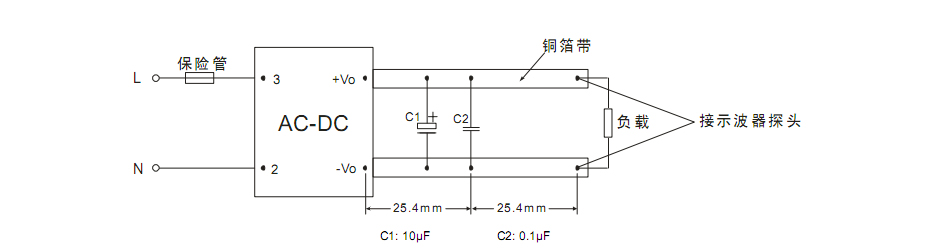

Test Method |
|

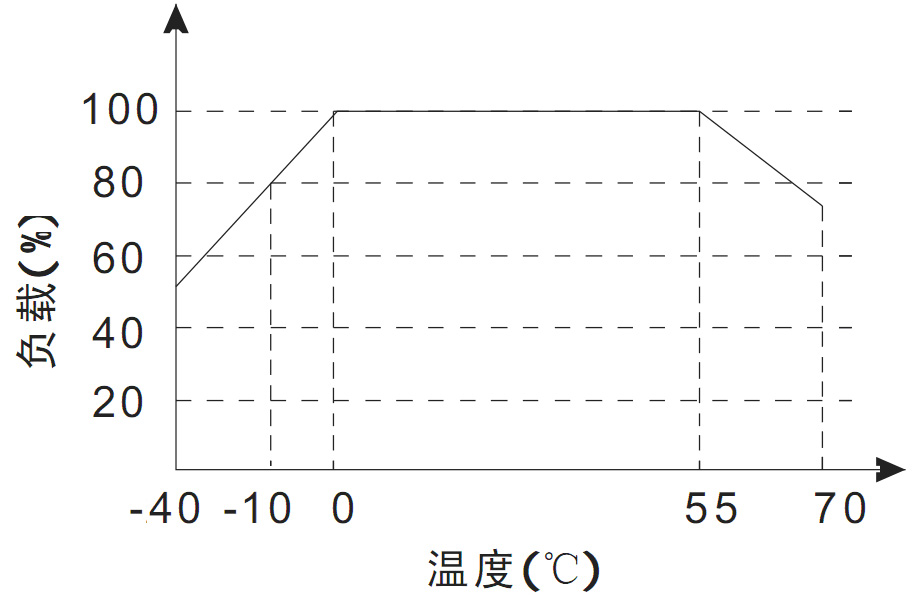

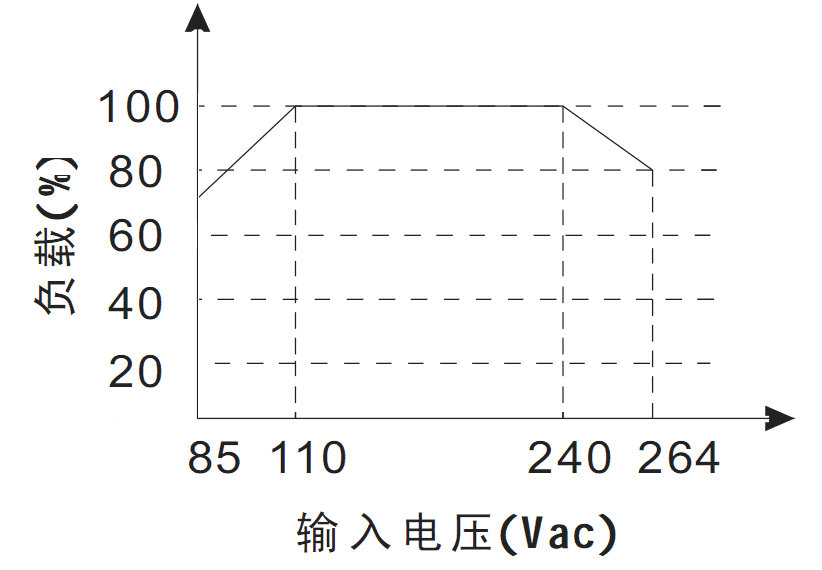

Temperature and load curve | Input voltage and load graph |
|
|
Typical application circuit diagram |

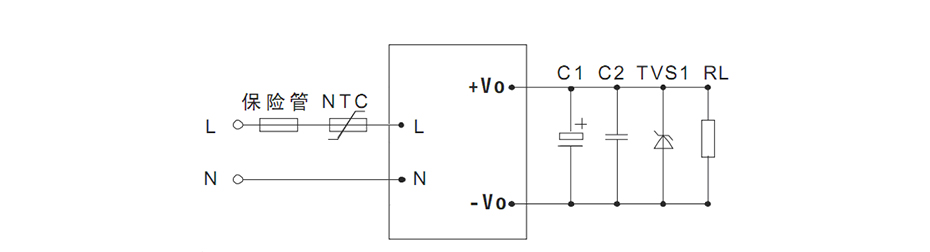

Single output

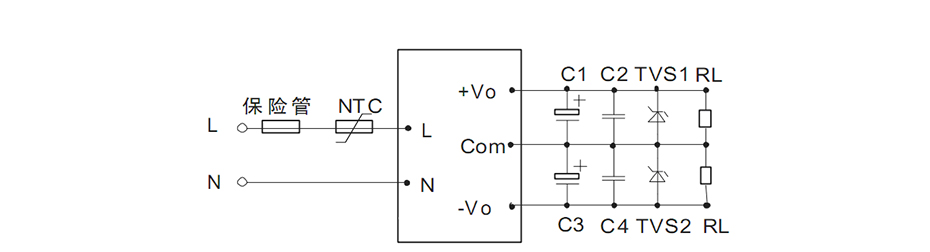

 Dual output

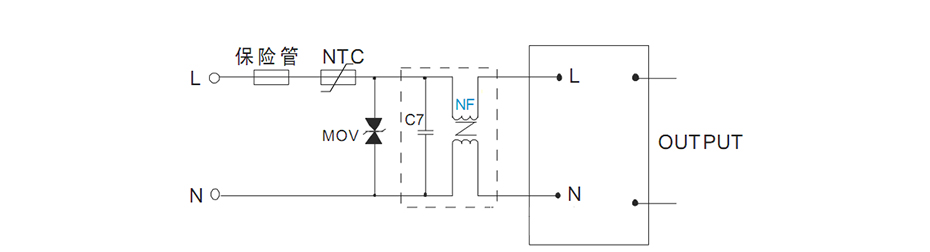

 EMC recommended circuit
 Remark: The output filter capacitors C1, C3, and C5 are electrolytic capacitors. It is recommended to use high-frequency and low-resistance electrolytic capacitors. Please refer to the technical specifications provided by each manufacturer for the capacity and current flowing. The capacitor withstand voltage drop rate is greater than 80%. C2, C4, and C6 remove high-frequency noise, it is recommended to take 0.1 F. TVS tubes are recommended for protection of later-stage circuits (in case of module abnormality). NTC thermistor, model: 5D-9. EMC recommended circuit parameters:
The MOV is a varistor, the recommended model is: 471KD10, which acts to protect the module from damage during lightning surges.
C7 is an X capacitor, 0.1µF/275V is recommended;
NF is a common mode inductor, 10mH-30mH is recommended. |

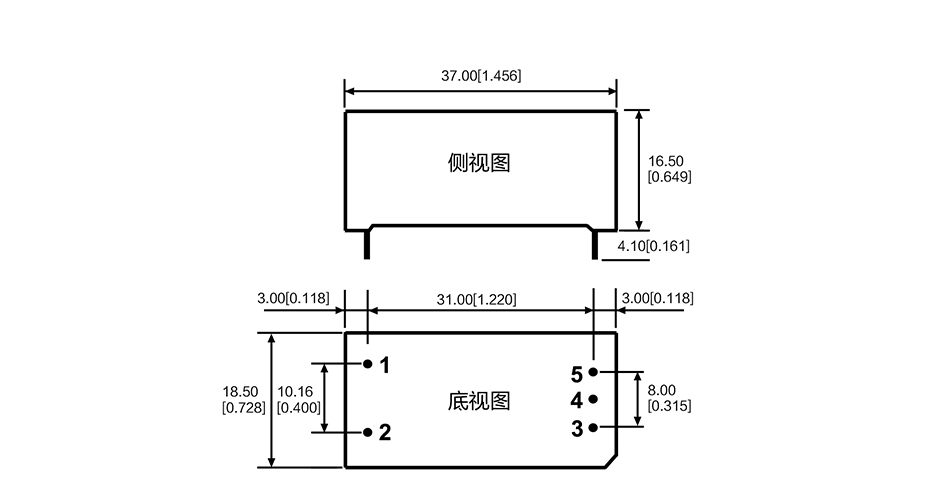

Appearance dimensions and pin definitions |
Terminal diameter: 0.8mm Unit: mm[in] mm[inch]
Error: ±0.5mm
|
