◆International universal full range input 85-265VAC (110-370VDC)
◆Ac-DC universal
◆Output short circuit protection
◆High efficiency, high power density
◆Low power consumption, green and environmental protection
◆Natural air cooling
◆Industrial product technology design

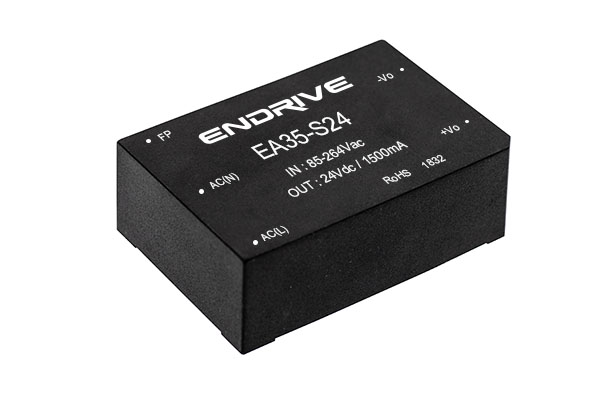

Product model

model

Input voltage

Output voltage Vo

Output current Io

Ripple + Noise

Efficiency (TYP)

EA35-S05

85-265Vac
(110-370Vdc)

5V

7A

100mv(Vp-p)

78%

EA35-S12

12V

3A

120mv(Vp-p)

84%

EA35-S15

15V

2.4A

150mv(Vp-p)

85%

EA35-S24

24V

1.50A

200mv(Vp-p)

86%

EA35-S48

48V

750mA

200mv(Vp-p)

87%

Note: If you need other output voltage products, please contact our company.

Input Features

Input voltage range

85-265Vac (120-370Vdc)

Frequency range

47-63 Hz

AC current (TPY)

1.1A/115VAC 0.6A/230VAC

Inrush current (TPY)

30A cold start

Leakage current

< 2mA / 240VAC

Output Characteristics

Output voltage accuracy

±2%

Source effect

±0.5% (typ)

Load adjustment rate

±1% (typ)

Required load

>10%

Short circuit protection

Can be short-circuited for a long time and recovered

Power down hold time

50ms(typ)/ at Vin:230VAC

General Features

Temperature characteristics

Operating temperature

-25℃~+55℃

Storage temperature

-40℃～+85℃

humidity

90%RH(max)

Warm drift

0.02%/℃

Switching frequency

132kHz(typ)

insulation

Input-Output

2000Vac/1Min

*Electromagnetic compatible electrostatic discharge
*Radio frequency radiation immunity
*Electric fast transient pulse group
*Surge

IEC/EN 61000-4-2 6kV/8kV
IEC/EN 61000-4-3 10V/m
IEC/EN 61000-4-4 2kV
IEC/EN 61000-4-5 1kV/2kV

*Conductive/radiation

EN55022, CLASS B

Safety Level

CLASS Ⅰ

Housing material

Hexagonal metal shell

Install

PCB

MTBF

>200,000h @25℃

Note: 1. If not specified, all specification parameters are measured at the input of 220VAC, rated load, and ambient temperature of 25℃.
2. Ripple and noise testing method: parallel line testing method, the output terminal must be connected in parallel with 0.1uF and 10uF capacitors and measured at a bandwidth of 20MHz.
3. Accuracy: Includes source effect and load adjustment rate.
4.* means that EMC peripheral circuit needs to be added.

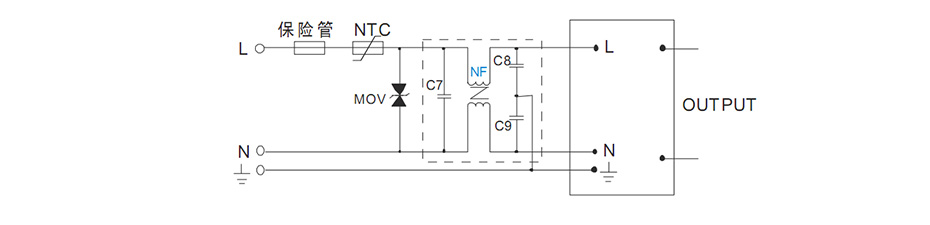

EMC recommended circuit

EMC recommended circuit parameters:
NTC thermistor, model: 5D-9.
The MOV is a varistor, the recommended model is: 471KD10, which acts to protect the module from damage during lightning surges.
C7 is an X capacitor, 0.1µF/275V is recommended; C8 and C9 are both Y capacitors, 2200pF/400V is recommended.
NF is a common mode inductor, 10mH-30mH is recommended.

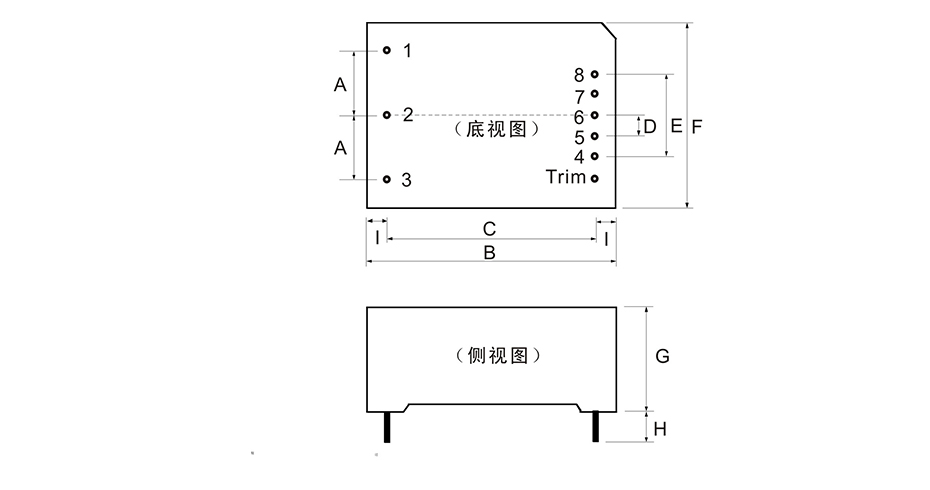

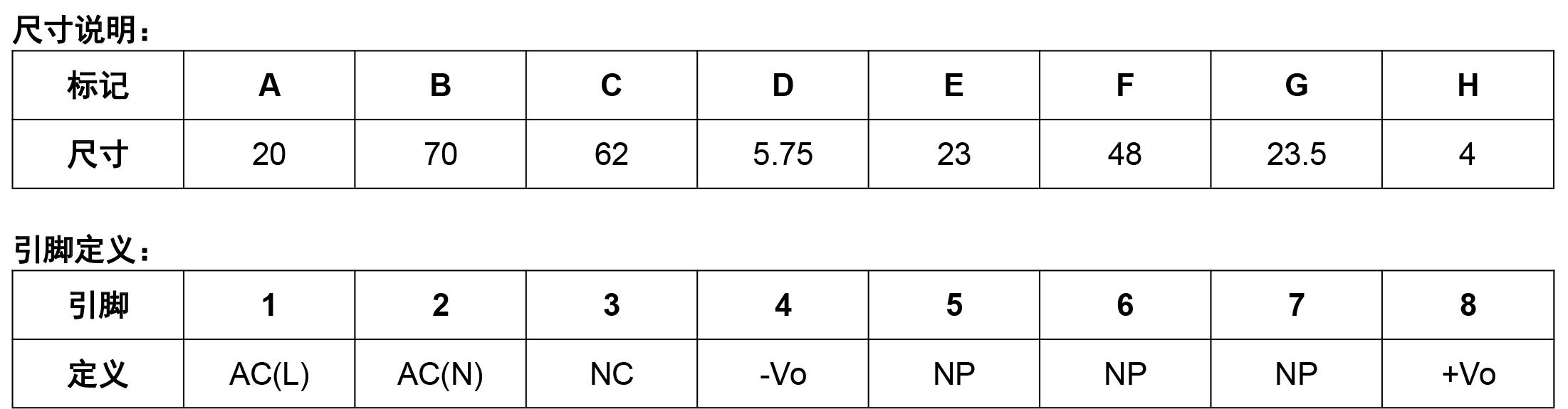

Appearance and size

Unit: mm, tolerance: ±0.5mm
