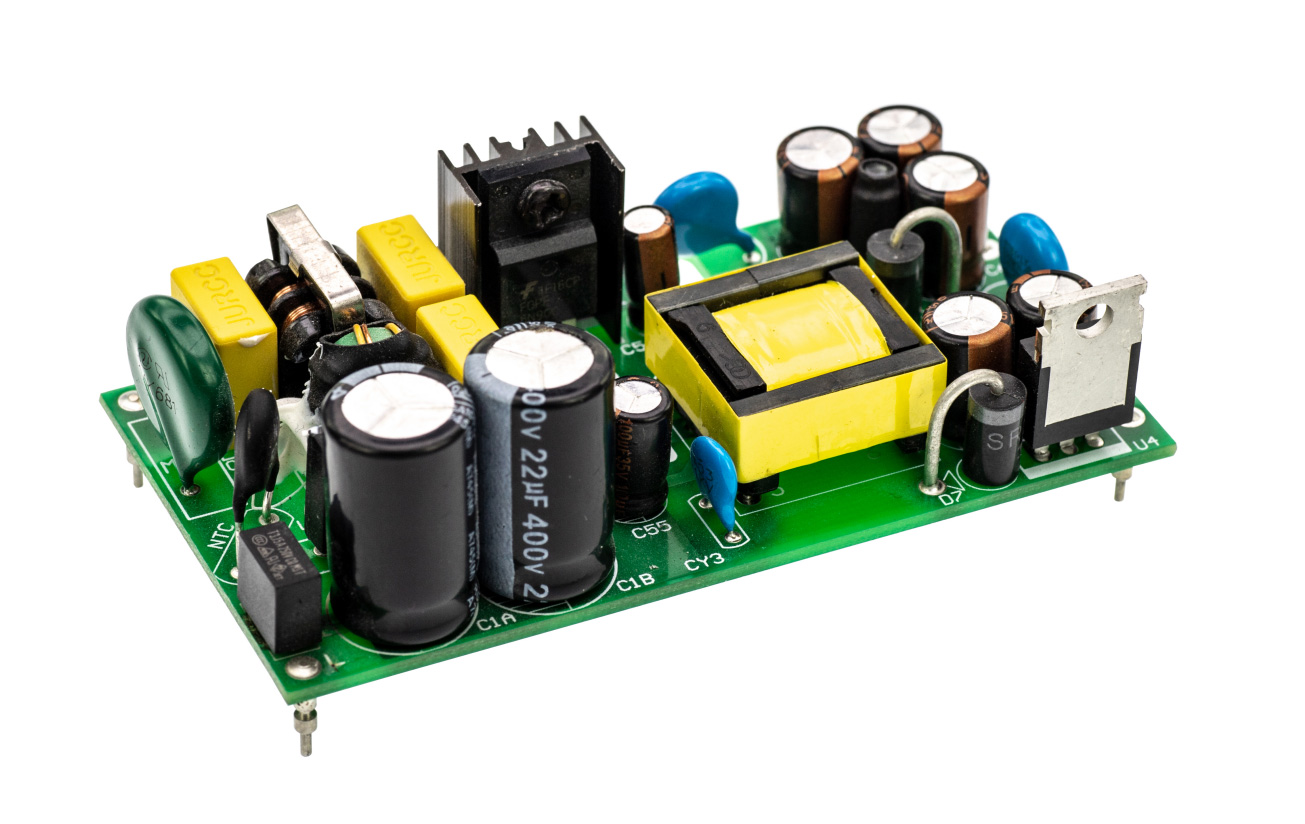

Features of custom power modules |
|
◆ Ultra-wide voltage input range: 85-300Vac
◆ General AC and DC
◆ Operating temperature range: -25-+70℃
◆ Complete protection functions (input overvoltage, output short circuit)
◆ High efficiency, ultra-low standby power consumption, energy-saving and environmentally friendly
◆ Isolation voltage: 4000Vac |
Application scope |
Customized power supply modules are mainly used in EC10 series products with wide input range, multiple isolation output, isolation voltage up to 4000Vac, strong anti-interference ability, good electromagnetic compatibility performance, and widely used in power acquisition terminals, comprehensive protection measurement and control devices, microcomputer protection equipment, etc. |
|
Customized power module model list |
Product model | Input voltage (VAC) | Output 1 voltage/current | Output 2 voltage/current | Efficiency (%, typ) |
EC10-E0505 | 85-300 | 5V / 1A | 5V / 0.5A | 73 |
EC10-E0512 |
| 5V / 1A | 12V / 0.3A | 75 |
EC10-E0524 |
| 5V / 1A | 24V / 0.1A | 76 |
Note: Add "★" product development, if you have other specifications, please contact our company directly 0519-89886279. |
|
Input Features |
project | Test conditions | Min | Typ | Max | unit |
Operating voltage |
| 85 |
| 300 | VAC |
***Input voltage* | Works normally in a short time without damage |
|
| 420 |
|
Input frequency |
| 47 |
| 63 | Hz |
Impact current |
|
|
| 25 | A |
Standby power consumption | Input voltage range |
|
| 0.5 | W |
*When using the input voltage exceeds this value, it will cause damage or damage to the product. |
Output Characteristics |
Output power | Total power | 1 |
| 10 | W |
Output 1 voltage accuracy | Input voltage range, 100% load |
| ±1 | ±2 | % |
Output 1 load adjustment rate | Nominal input, from 10% to 100% load |
| ±0.5 | ±1 |
|
Output 1 voltage regulation rate | Input voltage range |
| ±0.2 | ±0.5 |
|
Output 2 voltage accuracy | Input voltage range, 100% load |
| ±3 | ±5 |
|
Output 2 load adjustment rate | Nominal input, from 10% to 100% load |
| ±1 | ±2 |
|
Output 2 voltage regulation rate | Input voltage range |
| ±1 | ±2 |
|
Input overvoltage protection |
|
|
| 450 | Vac |
Output short circuit protection |
| Sustainable, self-recovery |
Startup time |
|
|
| 500 | ms |
Maintain time |
|
|
| 20 |
|
Ripple & Noise | 20MHz bandwidth, nominal voltage input 100% load |
| 50 | 100 | mVp-p |
|
Safety features |
Insulation voltage | Input-output, leakage current <5mA, 60S |
| 4000 |
| VAC |
| Output-output, leakage current <5mA, 60S |
| 4000 |
|
|
Insulation resistor | Input-output, output-output, @500VDC | 50 |
|
| MΩ |
Impact pressure resistance | No breakdown, no insulating breakdown | 6KVdc |
|
EMC Features |
Surge immunity | Comply with GB/T 17626-2008 Class4, combined with the integrated machine |
Group pulse immunity | Comply with GB/T 17626-2008 Class4, combined with the integrated machine |
Electrostatic discharge immunity | Comply with GB/T 17626-2008 Class4, combined with the integrated machine |
Conducted radiation | Comply with GB/T 9254-2008 (CISPR 22 B) |
|
Environmental characteristics |
Operating temperature |
| -25 |
| 70 | ℃ |
Storage temperature |
| -25 |
| 85 |
|
Temperature coefficient |
|
|
| 0.02 | %/℃ |
humidity |
| 20 |
| 90 | %RH |
Working Altitude | 20-90%RH, the product has no condensation and icing |
|
| 3000 | m |
Cooling method |
| Natural air-cool |
|
General Features |
Average failure-free time | MIL-HDBK-217F@25℃ | 200 |
|
| KH |
Package form |
| Naked board |
Installation method |
| Lead terminal |
Volume size |
| 85×45×25 (Length×Width×Height) mm |
|

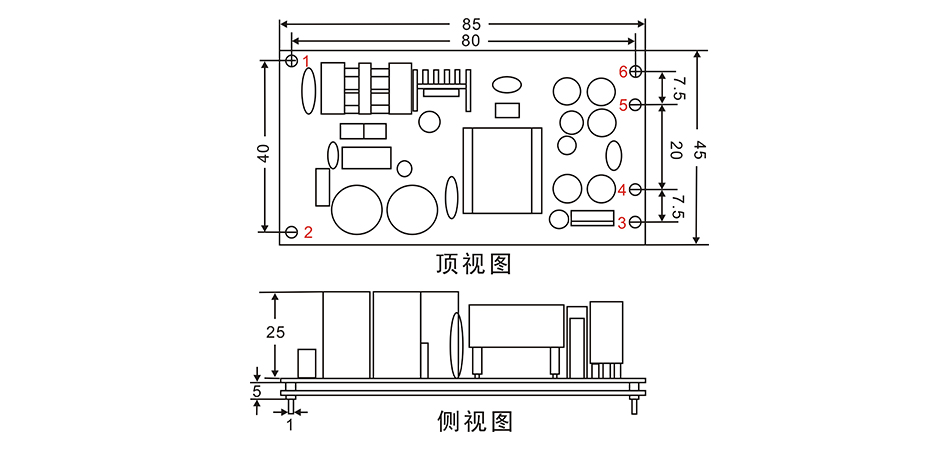

Appearance size, pin mode |
Unit: mm Error: ±0.2mm |
