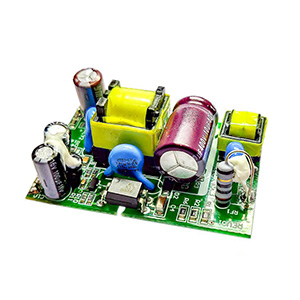

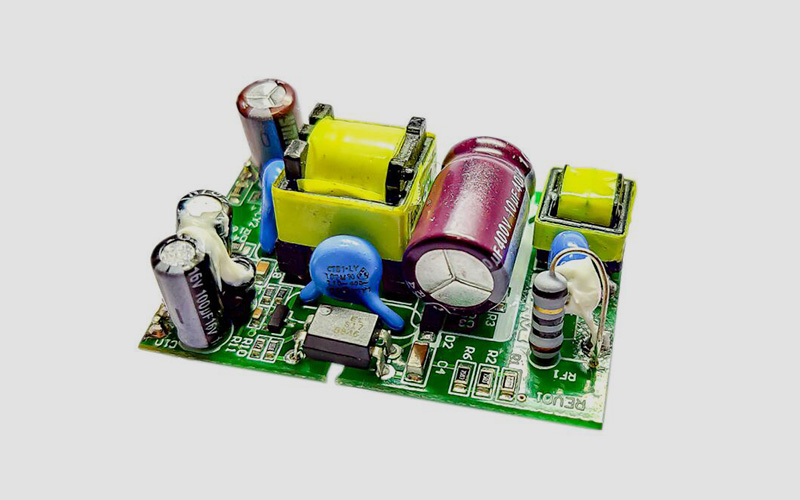

Product Features |
|
◆Ultra-wide voltage input 85～264VDC
◆Working temperature -40～+75℃
◆Output short circuit, etc.
◆Isolation voltage up to 4000VAC
◆High efficiency, low power consumption
◆Industrial product technical design |
Application scope |
Power systems such as power meters, industrial control systems, measuring instruments and instruments, and intelligent fields. |
Product model |
model | Output voltage Vo1 | Output voltage Vo2 | Output voltage Vo3 | Efficiency (TYP) |
Ef05-t050524 | 5V / 500mA | 24V / 100mA | 5V / 100mA | 71% |
* If you have any other specifications and models, you can contact our company directly. |
Input Features |
Input voltage range | 85～265VAC |
Input current | 0.08A (Input AC220V) |
External fuse (recommended value) | 1A Slow break |
Output Characteristics |
Main circuit Vo1 output voltage accuracy | ±2% |
Auxiliary Vo2 output voltage accuracy | ±10% |
Auxiliary Vo3 output voltage accuracy | ±10% |
Main output ripple + noise (peak-peak) (20MHz Bandwidth) | 100mV(TYP) |
Short circuit protection | Can be short-circuited for a long time and recovered |
General Features |
Temperature characteristics | Operating temperature | -40℃～+75℃ |
Storage temperature | -40℃～+90℃ |
humidity | 90%RH(MAX) |
Isolation voltage | Input-output:>2500VAC
Input-ground:>2500VAC
Output-output:>1000VAC |
Insulation impedance | Input-output: 500VDC, greater than 50MΩ |
Safety regulations | Refer to UL60950-1 |
Electromagnetic compatibility | Refer to the power automation standards |
Cooling method | Natural wind-cool |
Install | PCB |
size | 53.5*46*18mm |
Note: Except for special instructions, the data listed above are measured under conditions of TA=25℃ and humidity <75%. |

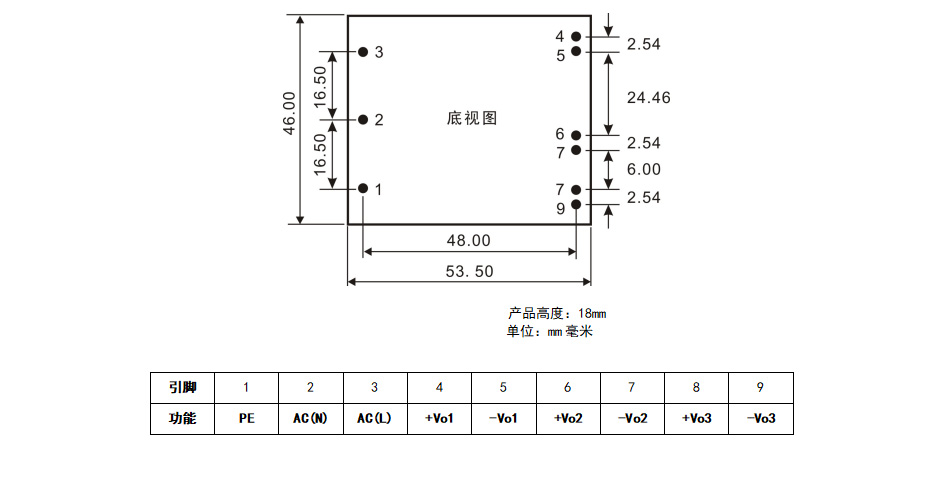

Appearance dimensions and pin definitions |
|
