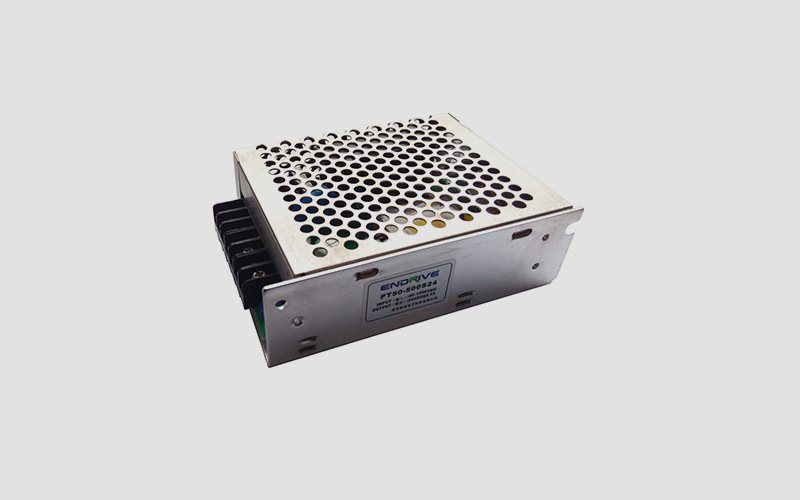

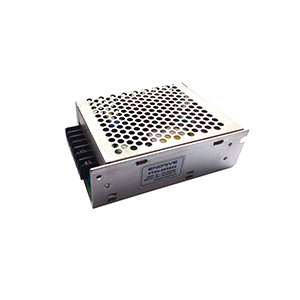

Photovoltaic special power supply PT60

◆ Ultra-wide voltage input range: 250-1000Vdc ◆ Ultra-small package, high power density ◆ High efficiency, ultra-low standby power consumption, energy saving and environmental protection ◆ Operating temperature range: -20- 85°C ◆ Complete protection functions (output over-voltage, over-current, short-circuit protection, etc.) ◆ Output voltage adjustment, output normal indication ◆ High withstand voltage level: 4000Vdc ◆Widely used in photovoltaic power generation equipment and other occasions

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Product model list
◆ Ultra-wide voltage input range: 250-1000Vdc ◆ Ultra-small package, high power density ◆ High efficiency, ultra-low standby power consumption, energy-saving and environmentally friendly ◆ Working temperature range: -20-+85℃ ◆ Complete protection functions (output overvoltage, overcurrent, short circuit protection, etc.) ◆ Output voltage regulation, output normal indication ◆ High voltage withstand level: 4000Vdc ◆Widely used in photovoltaic power generation equipment and other occasions
Product model list
Product model	Input voltage (VDC)	Output voltage (VDC)		Output current (mA)	Efficiency (%, typ)
PT60-500S12	250-1000	12		5000	88
PT60-500S24	250-1000	twenty four		2500	90
★Product research and development
Product Features
project			Value
Input voltage range			250-1000VDC
Output power			50W
Output voltage accuracy			±3% (MAX)
Load effect			±1%(MAX)
Output ripple noise (peak-peak) 20M bandwidth			1%Vo (typical)
Protection function			Output overvoltage, overcurrent, short circuit protection, etc.
Operating temperature			-25°C~+85°C max
Storage temperature			-40°C~+105°C max
Switching frequency			60~100KHZ
Pressure resistance			Input/output 4000VDC
Insulation resistor			Input/Output> 1000MΩ
vibration			GB/T2423.10-2008
Impact			GB/T2423.5-1995
MTBF			200,000h @ 25°C
Install			Fixed installation, self-connection lead
