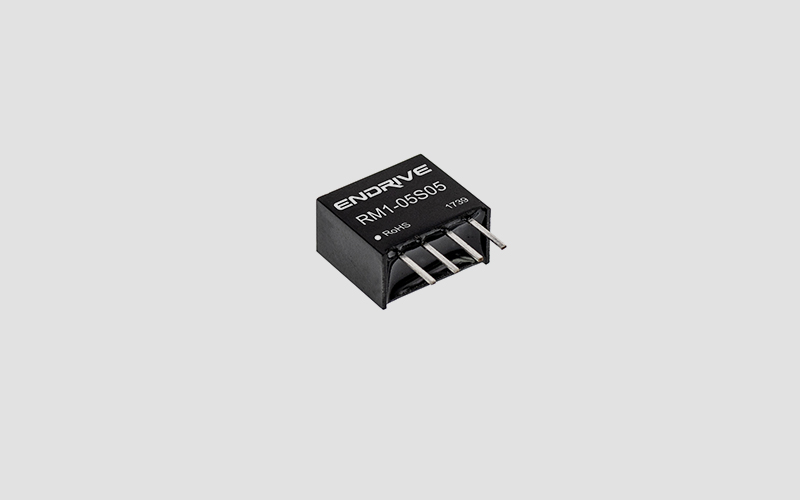

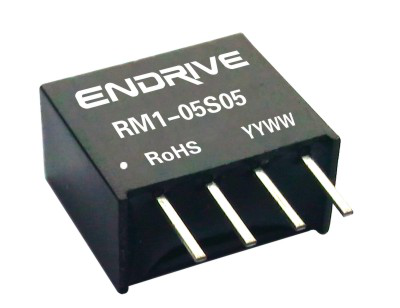

◆Input voltage range: 10%
◆Small volume, SIP4 package
◆Isolated 1000VDC/3000VDC (H)
◆Working temperature range: -40℃～+85℃
◆Flame retardant package, meets the requirements of UL94-V0
◆Complied with RoHS directive

dcdc module power supply application range

The power supply of the dcdc module is mainly used in power systems such as wireless network, telecommunications/data communications, power systems, industrial control systems, measurement instruments and instruments, and intelligent fields. It is suitable for designs such as large fluctuations in the input range, small power isolation, and small layout space, and to achieve modular product functions to improve product reliability.

dcdc module power supply model

model

Input voltage range

Output voltage/output current Vo/Io

Efficiency (TYP)

RM1-05S05

4.5 – 5.5 VDC

5V / 200mA

75%

RM1-05S12

4.5 – 5.5 VDC

12V / 83mA

78%

RM1-05S15

4.5 – 5.5 VDC

15V / 67mA

79%

RM1-12S05

10.8 – 13.2 VDC

5V / 200mA

71%

RM1-12S12

10.8 – 13.2 VDC

12V / 83mA

80%

RM1-12S15

10.8 – 13.2 VDC

15V / 67mA

80%

RM1-24S05

21.6 – 26.4 VDC

5V / 200mA

74%

RM1-24S12

21.6 – 26.4 VDC

12V / 83mA

77%

RM1-24S15

21.6 – 26.4 VDC

15V / 67mA

78%

dcdc module power supply characteristics

project

Test conditions

Min

Typ

Max

unit

Output voltage accuracy

Input voltage range, 100% load

-7.5

2.5

%

Load adjustment rate

From 10% to 100% load

15

20

Voltage adjustment rate

Input voltage range

1.0

±1.2

Output short circuit protection

1s

Ripple & Noise

20MHz bandwidth, nominal voltage input 100% load

100

150

mVp-p

Switching frequency

Input voltage range 100% load

100

KHz

Temperature drift coefficient

Nominal voltage input 100% load, -40℃～ +85℃

±0.03

%/℃

Storage humidity

95

%RH

Operating temperature

Safe workspace for product compliance

-40

85

℃

Storage temperature

-55

125

The shell heats up when the product works

Nominal voltage input 100% load

30

Pin resistance to soldering temperature

The solder joint is 1.5mm from the edge of the shell, 10 seconds

300

Insulation strength

Test time for 1 minute, leakage current is less than 0.5mA

1000 / 3000 (H)

VDC

Insulation resistor

Insulation voltage 500VDC

1000

MΩ

Cooling method

Natural air-cool

Housing material

Flame retardant and heat-resistant plastic

Average failure-free time

MIL-HDBK-217F@25℃

100

Ten thousand hours

weight

2.1

gram

Note: 1. Except for special instructions, the above data are measured under TA=25℃ and humidity <75%;
2. Other specifications can also be provided. Please contact our company for details.

Typical Applications

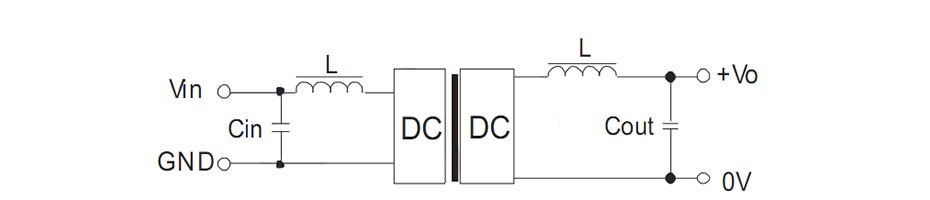

Single output

Notes on using:

Input power supply requires that
the input end of the product must be connected with a low impedance voltage source. If the voltage source impedance is too high or the connection line between the voltage source and the input end of the product is too long, the product will be instable. Connecting a low ESR capacitor to the input end of the product (as close as possible to the input pin of the product) can effectively solve the occurrence of this problem. For example, a 24V input product can be connected to a 22μF capacitor.

② Reduce output ripple
If further reduction of output ripple is required, a suitable filter capacitor can be connected in parallel at the output end or connected to a "LC" filter network. It should be noted that the external capacitor at the output end cannot be too large, otherwise it may cause startup problems. Please refer to the product's *** output capacitive load requirements for details. The bandwidth of the "LC" filter network should be far from the product's operating frequency range. Generally speaking, connecting a low ESR filter capacitor to the output end can meet the requirements, usually Co=100uF.

③ Input current
When the input power supply voltage is unstable, please ensure that its output voltage fluctuation range meets the input requirements of the product; the output current of the input power supply must be sufficient to cope with the instantaneous start current Ip of the product, generally: Ip = 2-4*Iin-max.

④This  product cannot be used in parallel and does not support hot plugging.

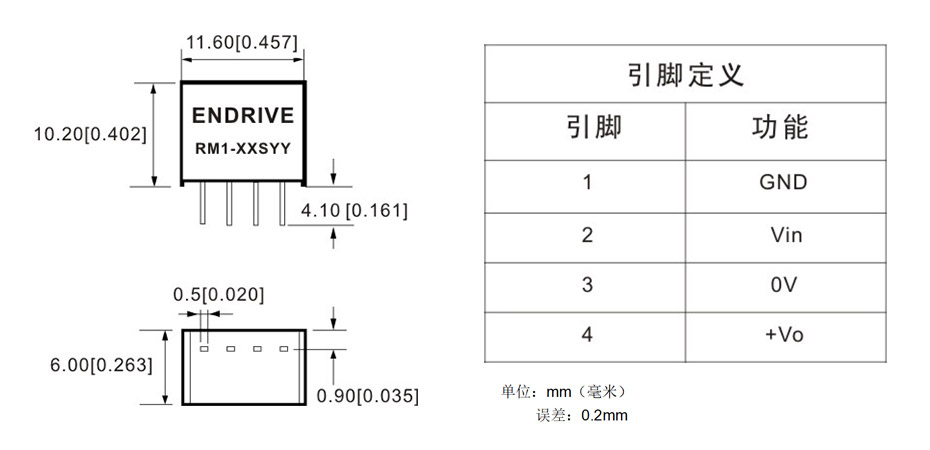

Appearance size and pin mode
