Product Features
²Industry-standard DIP packaging
² Operating temperature range: -40 ℃ to +85 ℃
²No isolation output power pin
²Point -to-point communication
²Electromagnetic radiation EMI is very low
² Application fields: industrial communications, coal mining industry, power monitoring, building automation
² Bus has ESD protection capability up to 15KV
Product Description

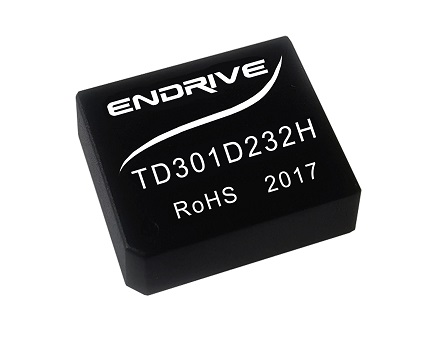

TD301D232H / TD 5 01D232H is a high-speed single-channel isolated RS - 232 transceiver, suitable for bidirectional data communication, ***. The high baud rate can reach 115.2k bps. The transceiver has an integrated isolation DC/DC converter. It only requires a single power supply to achieve electrical isolation between the controller and the RS-232 transceiver. The high isolation voltage reaches 2500VDC, and there is no need to configure an isolated power supply , which is convenient for users to apply . Since the control ground is completely isolated from the bus ground , it can withstand higher common mode voltages. Components with internally integrated anti- static function, through the IEC61000-4-2 air discharge test, the human body model ( HBM ) has an ESD protection capability of more than ± 15kV. Use dual inline insertionDIP8 package has the characteristics of small size and high integration.
Selection table
Product model | Power supply voltage range (VDC) | Quiescent current (mA,Typ) | *** . Large working current (mA) | Transmission baud rate (bps) | Number of nodes (pcs) |
TD301D232H | 3.3 ( 3.15 ~ 3.45 ) | 50 | 75 | 115200 | 2 |
TD 5 01D232H | 5 ( 4.75 ~5.25) | 35 | 65 | 115200 | 2 |
*** . Large limit parameters
project | condition | *** . Small value | Nominal value | *** . Big value | unit |
Input voltage range | TD301D232H /TD 5 01D232H | -0.7 | 5 | 6 | Vdc |
Pin resistance to soldering temperature | Manual welding@3~5 seconds | -- | 370 | -- | ℃ |
Wave soldering@5~10 seconds | -- | 265 | -- |
Hot plug | -- | Not supported |
Note: This series of modules does not input anti-reverse connection function, and it is strictly forbidden to input positive and negative connections, otherwise the module will be irreversible and damaged.
Input Features
project | symbol | condition | *** . Small value | Nominal value | *** . Big value | unit |
Input voltage | V CC | TD301D232H /TD 5 01D232H | 3.15 | 5 | 5.25 | V DC |
TXD logic level | High level | V IH |
| 0.7V CC | -- | V CC +0.5 |
Low level | V IL |
| 0 | -- | 0.3V CC |
RXD logic level | High level | V OH | I RXD =-4mA | V CC -0.4 | V CC -0.2 | -- |
Low level | V OL | I RXD =4mA | -- | 0.2 | 0.4 |
TXD drive current | I TXD |
| 2 |
|
| mA |
RXD output current | I RXD |
|
|
| 10 |
TXD pull-up resistor | R TXD |
|
| 10 |
| kΩ |
Serial interface | RSM232 | Compatible with 3.3V and 5V standard UART interfaces |
Output Characteristics
project | symbol | condition | *** . Small value | Nominal value | *** . Big value | unit |
Built-in isolated output power supply voltage | V O | Nominal input voltage | -- | -- | -- | VDC |
Transmitter output voltage | V OD | Nominal input voltage, differential load of 3K Ω | ±5 | ±5.4 | -- |
Receiver input voltage | I OD |
| -15 | -- | +15 |
Bus interface protection |
| ESD electrostatic protection |
Transmission characteristics
project | symbol | condition | *** . Small value | Nominal value | *** . Big value | unit |
Transceiver input impedance |
| -7V≤VCM≤+12V | 3 | 5 | 7 | kΩ |
Data transmission delay |
|
| 100 | -- | 1000 | ns |
General Features
project | condition | *** . Small value | Nominal value | *** . Big value | unit |
Electrical isolation |
| Isolated at both ends (input and output are isolated from each other) |
Isolation voltage | Test time for 1 minute, leakage current <5mA, humidity <95% | -- | 2.5K | -- | VDC |
Operating temperature range | The output is full load | -40 | -- | +85 | ℃ |
Storage temperature | -- | -55 | -- | +125 | ℃ |
Storage humidity | No condensation | -- | -- | 95 | % |
Case temperature rise during operation |
| -- | 20 | -- | ℃ |
Usage environment | The surrounding environment has dust, strong vibration, shock and gases that corrode the product components may cause damage to the product. |
Physical characteristics
project | parameter |
Housing material | Black flame retardant heat-resistant plastic (UL94-V0) |
Package size | 19.50*16.50*7.10mm |
weight | 4.0g (nominal) |
Cooling method | Natural air-cool |
EMC Features
Classification | project | parameter | grade |
EMS | Electrostatic discharge immunity | IEC/EN 61000-4-2 Contact ±4KV/Air ±8KV (bare metal, RS-232 port) | Perf.Criteria B |
IEC/EN 61000-4-2 Contact ±8KV/Air ±15KV (recommended circuits are shown in Figure 2/Figure 3) | Perf.Criteria B |
Pulse group immunity | IEC/EN 61000-4-4 ±2KV | Perf.Criteria B |
Lightning surge immunity | IEC/EN 61000-4-5 Common mode ±2KV (bare metal, RS-232 port) | Perf.Criteria B |
IEC/EN 61000-4-5 Differential mode ±2KV, common mode ±4KV (recommended circuit see Figure 2/Figure 3) | Perf.Criteria B |
Conducted harassment immunity | IEC/EN61000-4-6 3Vr.ms | Perf.Criteria A |
Note: ( 1) The input voltage cannot exceed the specified range value, otherwise irrecoverable damage may occur.
( 2) This parameter is limited to 232 communication ports, namely RIN, TOUT, and RGND. The primary module is not grounded during testing.
( 3) If there is no special instructions, the parameters in this manual are measured at 25℃, humidity 40%~75%, and input nominal voltage.

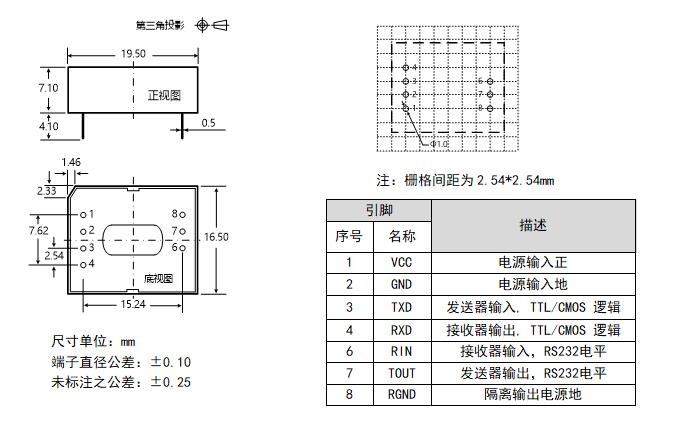

Size /suggested printing layout
Circuit design

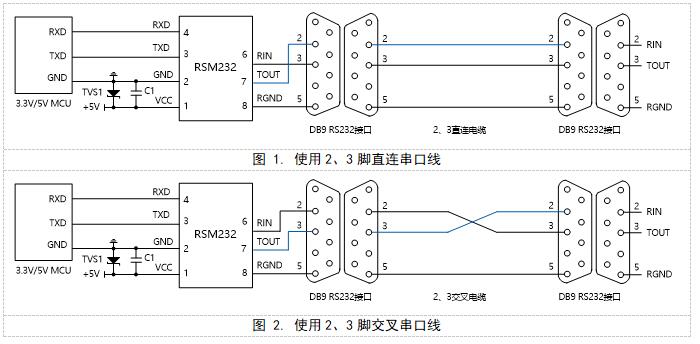

The RSM232 isolating transceiver modules RXD and TXD pins support 3.3V and 5V system levels and can be embedded directly into the circuit board to communicate with external devices through a serial interface. If the user needs to connect external devices through the DB9 serial port line, the internal connection of the DB9 serial port line must be considered. There are two types of DB9 serial port line: 2 and 3 pin direct connection and cross connection. Figure 1 and Figure 2 show a typical connection circuit for the RSM232 module to the serial interface of the MCU, and the 232 channel uses direct connection and cross-serial port line to communicate with external devices.
Typical recommended circuits for EMC
If the RSM232 module is used in situations where the environment is harsh (such as high voltage power, lightning strikes, etc.), in order to ensure the reliable operation of the module, it is recommended that users add TVS tubes, lightning protection tubes and other devices to form a port protection circuit at the TOUT and RIN terminals of the module. The specific recommended application circuit is shown in Figure 3, and the recommended parameters are shown in Table 1. The recommended circuit diagram and parameter values are only used as reference. Please determine whether the devices in the circuit diagram are needed based on the actual situation.
|

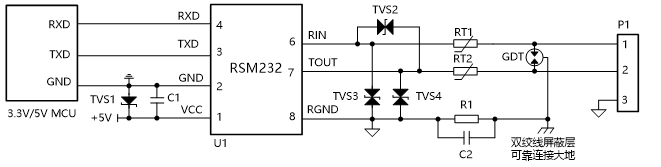

Figure 3. EMC recommended circuit |
If you need to meet specific surge level requirements, it is recommended to use the recommended protection circuit shown in Figure 3. Table 1 gives a set of recommended device parameters. The recommended circuit diagram and parameter values are only used as reference. Please determine the appropriate parameter values according to the actual situation.
Table 1. EMC recommended parameters
Marking number | model | Marking number | model |
C1 | 10μF, 25V | TVS1 | SMBJ5.0A |
RT1, RT2 | JK250-180T | TVS2 | SMBJ30CA |
R1 | 1MΩ, 1206 | TVS3, TVS4 | SMBJ18CA |
C2 | 102, 2KV, 1206 | GDT | B3D090L |
U1 | RSM232 module |
|
|
