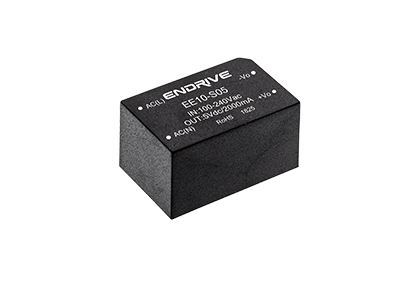

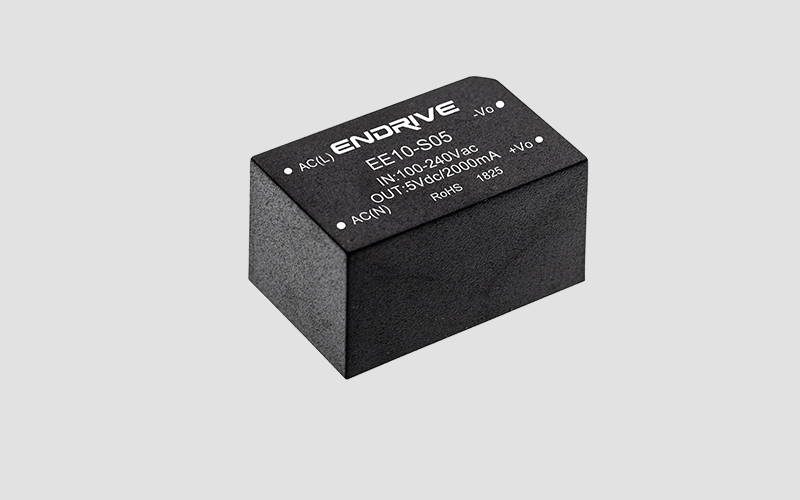

Product Features |
|
◆Ultra-wide voltage input 85～264VAC (100～370VDC)
◆Working temperature -25℃～+70℃
◆Output short circuit, self-recovery
◆Small size, high power density
◆Industrial product design |
Application scope |
Small size, widely used in IoT devices, wireless communications, smart homes, automated control, instrumentation and other industries. |
Product model |
model | Output voltage/Vo | Output current/Io | Efficiency (TYP) |
EE10-S05 | 5V | 2000mA | 77% |
EE10-S12 | 12V | 833mA | 79% |
EE10-S15 | 15V | 666mA | 80% |
EE10-S24 | 24V | 420mA | 82% |
If you have any other specifications and models, you can contact us directly. |
Input Features |
Input voltage range | 85～264Vac (120～370Vdc) |
Input current | 110mA (TYP) @110VAc 70mA (TYP) @ 230VAc |
External fuse (recommended value) | 1A Slow break |
Output Characteristics |
Output voltage regulation accuracy | ±2% |
Source effect | ±0.5% (typ) |
Load adjustment rate (10%~100%) | ±1% (typ) |
*** Small load | 10% |
Output ripple + noise (peak-peak) | 100mV(TYP) (20MHz Bandwidth) |
Short circuit protection | Can be short-circuited for a long time and recovered |
Output overvoltage protection | ≥1.1 times |
General Features |
Temperature characteristics | Operating temperature
power derating
storage temperature
housing temperature | -25℃～+70℃
3.75% / ℃,
-40℃～+105℃
+90℃ max |
Power down time |
| 40ms(typ)/ at Vin:320Vdc |
humidity |
| 85%RH(max) |
Warm drift |
| 0.02%/℃ |
Switching frequency |
| 60KHz(typ) |
insulation | Input-Output | 3000VAC / 1Min |
Leakage current |
| 0.3mA RMS typ. 230VAC/50Hz |
*Electromagnetic compatible electrostatic discharge
*Radio frequency radiation immunity
*Electric fast transient pulse group
*Surge | IEC/EN 61000-4-2 level 3 6kV/8kV
IEC/EN 61000-4-3
IEC/EN 61000-4-4 level 3 2 kV
IEC/EN 61000-4-5 level 3 1kV/2kV |
*Conductive/radiation |
| EN55022, level A |
Safety Level |
| CLASS Ⅰ |
Case grade |
| Flame retardant plastic |
Install |
| PCB |
MTBF |
| >200,000h @25℃ |
Note: 1. When marking the * test items, peripheral EMC recommended circuits need to be added;
2. Except for special instructions, the above data are measured under TA=25℃ and humidity <75%. |

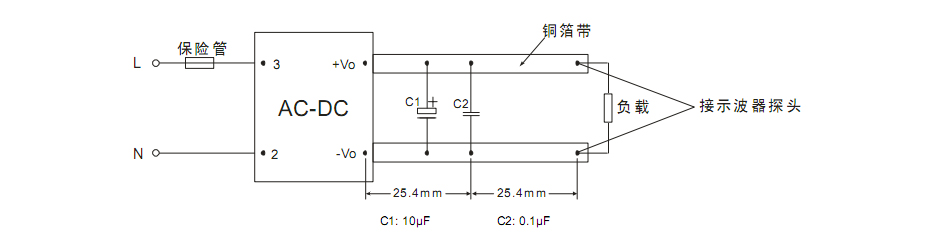

Test Method |
|
Typical Applications |

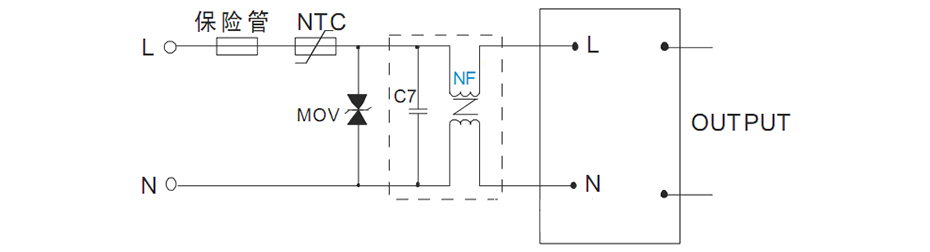

EMC recommended circuit
Remark: The output filter capacitor C1 is an electrolytic capacitor. It is recommended to use a high-frequency and low-resistance electrolytic capacitor. Please refer to the technical specifications provided by each manufacturer for the capacity and current flowing. The capacitor withstand voltage drop rate is greater than 80%. C2 removes high-frequency noise, it is recommended to take 0.1 F. NTC thermistor, model: 5D-9. EMC recommended circuit parameters:
The MOV is a varistor, the recommended model is: 471KD10, which acts to protect the module from damage during lightning surges.
C7 is an X capacitor, 0.1µF/275V is recommended;
NF is a common mode inductor, 10mH-30mH is recommended. |

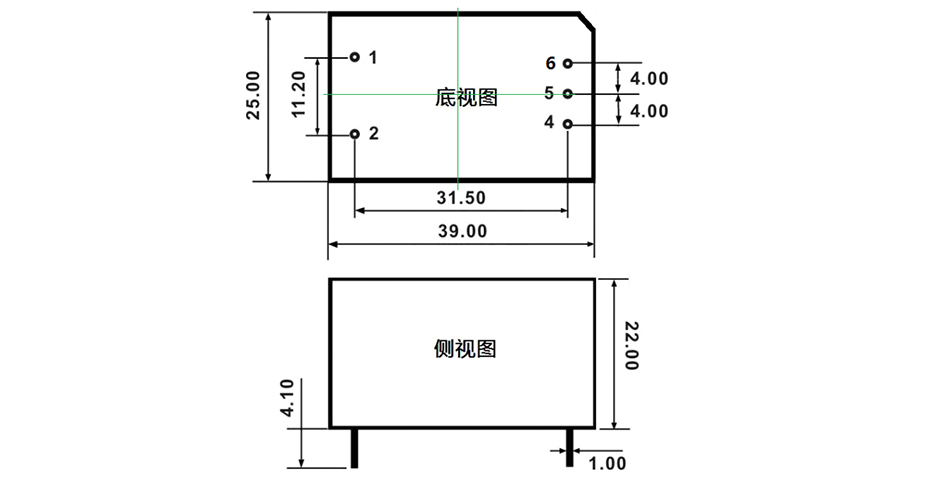

Appearance dimensions and pin definitions |
Unit: mm Tolerance: 0.25mm
Pin definition:
|
Pin | 1 | 2 | 3 | 4 | 5 | 6 |
|
EE10 -SXX | AC(N) | AC(L) | NP | -Vo | NP | +Vo |
|
