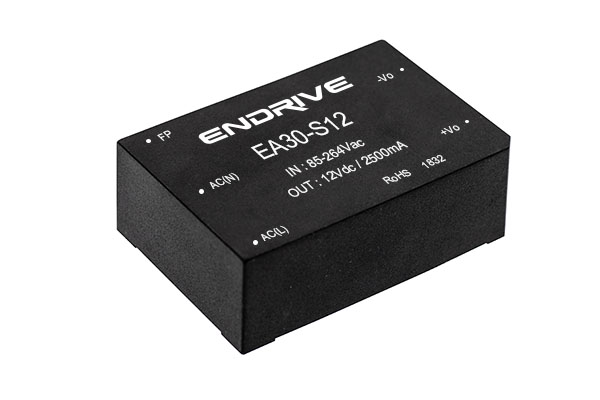

Product Features

◆ International universal full range input 85-265VAC (1 2 0-370VDC)

◆ Used with AC and DC

◆ Output short circuit protection

◆ High efficiency and high power density

◆ Low power consumption, green and environmental protection

◆ Natural wind and cold

◆ Industrial-grade product technical design

Product model

model

Module size

Input voltage

Output voltage /current Vo/Io

Ripple + Noise

Efficiency (TYP)

EA3 0 -S12

70 × 48 × 23.5mm

85-265VAC

( 1 2 0-370VDC)

12V /  2 .5 A

120 mv( Vp-p )

8 5 %

EA3 0 -S15

15V / 2. 0 A

150 mv( Vp-p )

8 6 %

EA3 0 -S24

24V /  1. 2 5 A

200 mv( Vp-p )

8 7 %

EA3 0 -S48

48 V /  0. 6 25 A

200 mv( Vp-p )

87 %

Note: If you need other output voltage products, please contact our company.

Input Features

Input voltage range

85-265Vac (120-370Vdc)

Frequency range

47-63 Hz

AC current ( TPY)

1.1A/115VAC 0.6A/230VAC

Inrush current ( TPY)

30A cold start

Leakage current

< 2mA / 240VAC

Output Characteristics

Output voltage accuracy

±2%

Source effect

±0.5% (typ)

Load adjustment rate

±1% (typ)

Required load

>10%

Short circuit protection

Can be short-circuited for a long time and recovered

Power down hold time

50ms(typ)/ at Vin:230VAC

General Features

Temperature characteristics

Operating temperature

- 40 ℃ ~ + 70 ℃

Storage temperature

-40℃～+85℃

Case temperature

+90℃ max

humidity

90%RH(max)

Warm drift

0.02%/℃

Switching frequency

132kHz (typ)

insulation

Input -Output

3 000Vac/1Min

*Electromagnetic compatible electrostatic discharge

*Radio frequency radiation immunity

* Electric fast transient pulse group

*surge

IEC/EN 61000-4-2 6kV/8kV

IEC/EN 61000-4-3 10V/m

IEC/EN 61000-4-4 2kV

IEC/EN 61000-4-5 1kV/2kV

*Conductive/radiation

EN55022, CLASS B

Safety Level

CLASS  Ⅰ

Housing material

Flame retardant plastic

Install

PCB

MTBF

>200,000h @25℃

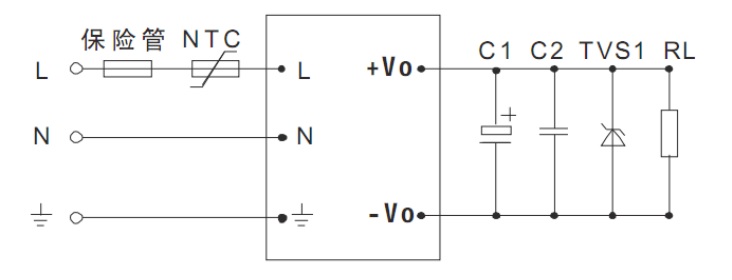

Typical Applications

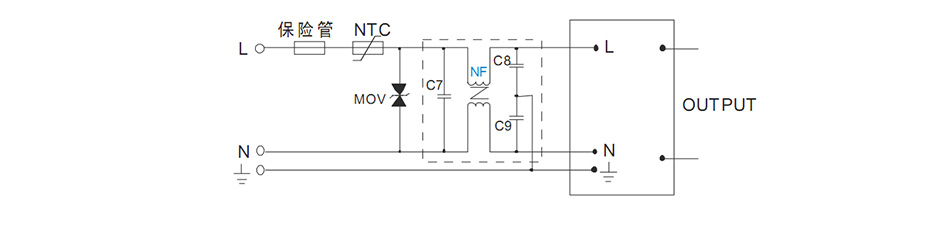

EMC recommended circuit

EMC recommended circuit parameters:

NTC thermistor, model: 5D-9.

The MOV is a varistor, the recommended model is: 471KD10, which acts to protect the module from damage during lightning surges.

C7 is an X capacitor, 0.1 µ F/275V is recommended; C8 and C9 are both Y capacitors, 2200pF/400V is recommended.

NF is a common mode inductor, 10mH-30mH is recommended.

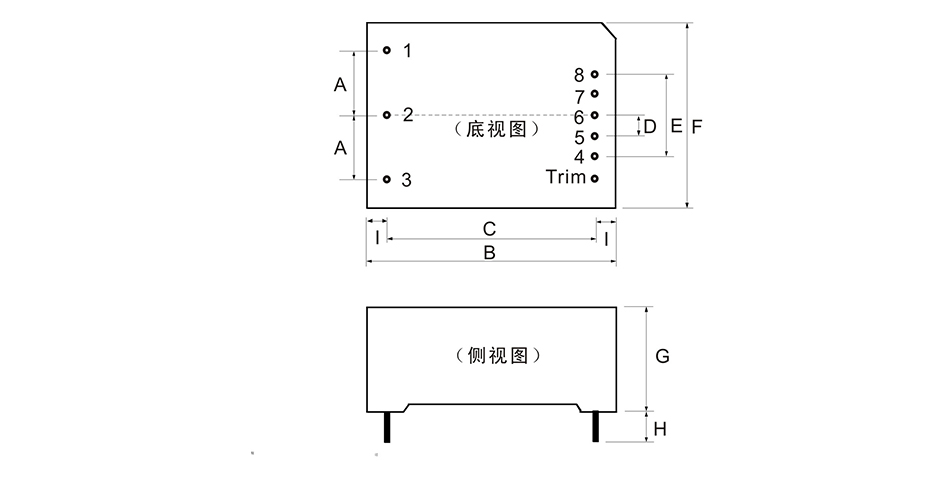

Unit: mm (mm)

Error: ± 0.5mm

Size description:

Pin definition:
